£684.84

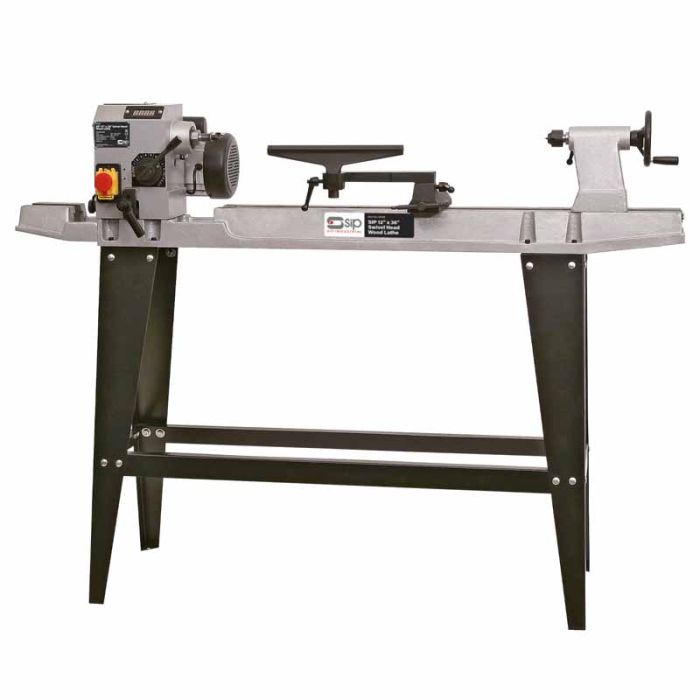

SIP 12 x 36 Inches Swivel Head Wood Lathe - Wood - L47.5 x W151 x H112 cm
In Stock Available To Order
Delivery within an estimated 2 - 3 working days
SKU
SIP12x36SwivelHeadWodLathe01938
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.
For added functionality, the headstock swivel 360° with four locking positiong to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Key Features:
- 3/4" x 16TPI spindle thread size
- 300mm max. turning diameter (900mm between centres)
- Pressed steel legs with cross braces
- Heavy-duty cast iron lathe bed
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials.
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Applications & uses | Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
Features:
- SIP 2-Year Standard Silver Warranty
- 3/4" x 16TPI spindle thread size | Allows the use of various turning attachments.
- 300mm max. turning diameter (900mm between centres) | Enables a variety of woodwork projects and jobs.
- 360° swivel headstock with four lock positions | Allows for outboard turning of larger wood materials.
- Heavy-duty cast iron lathe bed and pressed steel legs | Ensures greater turning stability and accuracy.
- Cast iron MT1 headstock and MT2 tailstock | For an assured hold to the workpiece when turning.
- Digital speedometer display | Provides accurate readout of headstock spindle speed.
- Fitted with hollow tailstock for long hole boring | Offers added versatility for professional applications.
Dimensions:
- Prod Height (mm): 1380
- Prod Width (mm): 1120
- Prod Depth (mm): 475
- Net Weight (Kg): 77.00
Technical Data:
- Input Supply: 230v (13A)
- Motor Power: 550w (0.75hp)
- Speed Range: 500rpm - 2000rpm
- Distance Between Centres: 900mm (36")
- Turning Capacity: 310mm (12")
- Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
- Drive Spur Size: 1 Morse Taper
- Tailstock Rotating Centre Size: 2 Morse Taper
- Noise Level: 68dB(A)
