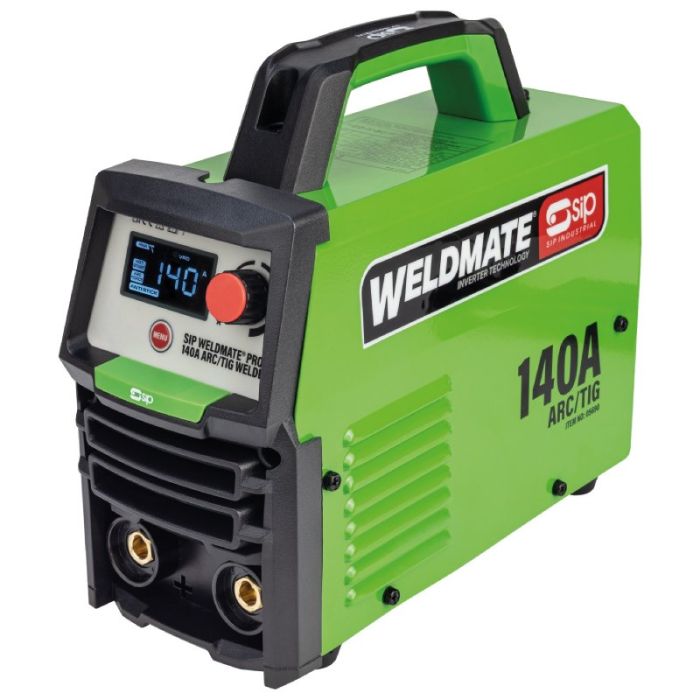

SIP WELDMATE PRO 140A ARC/TIG Inverter Welder - L27 x W12 x H23.5 cm
In Stock Available To Order
Delivery within an estimated 2 - 3 working days
SKU
SIPT1400ARC/TIGInverterWel05705
The SIP WELDMATE PRO 140A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops.
Featuring Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation. Powerful, compact and lightweight, this welder also operates from a 230v (13A) supply for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features:
- Dual process ARC/TIG welder for greater flexibility at high duty cycles
- Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
- Synergic control auto sets welding current output for electrode diameter selected
- Infinitely variable dial offers a smoother stepless output adjustment
- Intuitive LCD screen for setting output and selecting welding functions
- Compact and lightweight design for easy work area movement
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
DUAL PROCESS ARC/TIG INVERTER WELDER FOR GREATER APPLICATION FLEXIBILITY AT HIGH DUTY CYCLES
- Duty cycle 20°C: 140A @ 30% (ARC/TIG).
- Lift TIG function for added welding versatility. Compatible with gas valve TIG torch (Item 08206A recommended).
AN INFINITELY VARIABLE DIAL OFFERS SMOOTHER STEPLESS OUTPUT ADJUSTMENT FOR HIGHER QUALITY & EASY TO CONTROL WELDING
- An intuitive control panel with LCD screen makes it easy to set the welding current output and select the welding functions.
SYNERGIC CONTROL ADJUSTS THE WELDING CURRENT OUTPUT ACCORDING TO THE ELECTRODE DIAMETER SELECTED FOR OPTIMAL PENETRATION & BEAD FORMATION
- Electrode diameter selector sets the appropriate welding current output based on the diameter size selected. This ensures the optimum welding performance for the required application.
- Selectable electrode diameters: ⌀ 1.6mm, 2mm, 2.5mm and 3.2mm.
EASY-TO-USE WELDING FUNCTIONS DESIGNED FOR GREATER WELDING CONTROL TO ACHIEVE HIGHER QUALITY WELDS
- Voltage Reduction Device (VRD) prevents accidental arc strike-up for greater user safety.
- Anti-stick function prevents the welding electrode from sticking to the workpiece when striking-up for a smoother welding process.
- ARC force stabilises the arc for greater welding control and improved welding efficiency.
- Hot start delivers a short burst of higher welding current output, to improve arc ignition and help to penetrate thicker materials.
METAL CASING WITH HEAVY-DUTY CARRY HANDLE & HIGH-QUALITY FINISH RESISTANT TO WORK AREA DAMAGE
- The compact and lightweight design ensures easy work area movement.
Specifications:
- Output Current: 10A - 140A
- Output Voltage: ARC: 20.4v - 25.6v, TIG: 10.4v - 15.6v
- Duty Cycle @ 20°C: 140A @ 30%
- Welding Material Thickness: 1.6mm - 7mm (mild steel)
- Protection / Insulation: F
- Net Weight: 4.4 kg
- Gross Weight: 5.3 kg
- Product Dimensions: 235(H) x 120(W) x 270mm(D)
